Fuse Link For High-Voltage Condenser, High-Voltage Fuse Link Of Enclosed Fuses, Fuse Link With Button

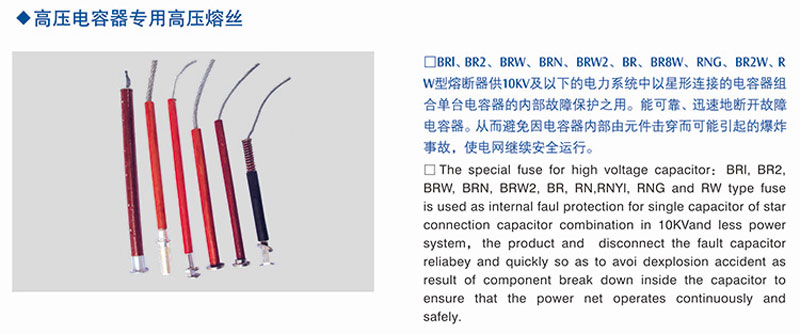

The fuse link for high-voltage condenser: BR1, BR2, BRW, BRN, BRW2, BR, BR8W, RNG, BR2W and RW type fuse links are used as internal fault protection for single capacitor of star-shape connection capacitor combination in 10KV and less power system. The product can disconnect the fault capacitor reliably and quickly so as to avoid explosion accident as a result of component break down insid the capacitor to ensure that the power net operates continuously and safely.

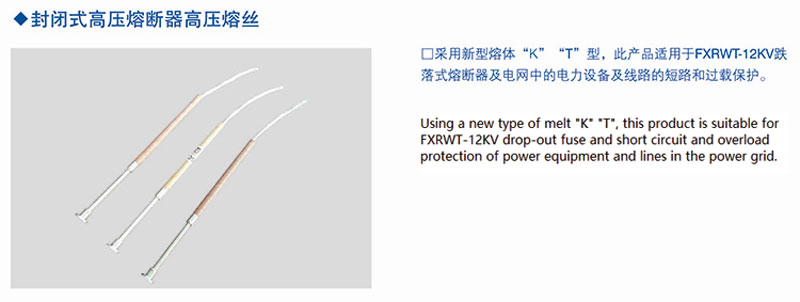

The high-voltage fuse link of enclosed fuses: the product has “K” and “T” type. It can be used in protecting drop-out fuse (like FXRWT-12KV type) and the electric facilities in power net from overloading and short-circuit.

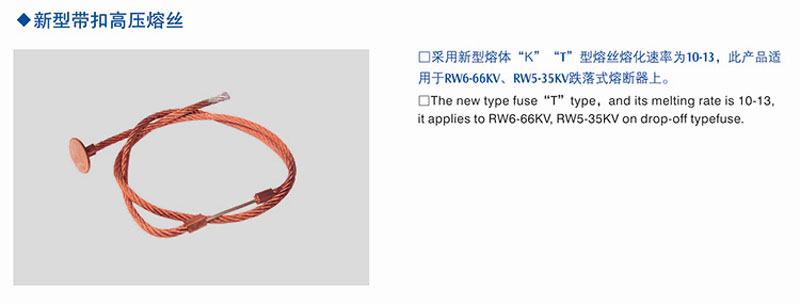

The fuse link with button: the product is made of “K” type fuse link with 6-8 melting speed, or “T” type with 10-13 melting speed. It applies to drop-out fuse like RW6-66KV and RW5-35KV type.
